Mounting engine bonnet/hood lifter

Motorhaubenlift
© PIMPmyCASCCADA 26.01.2019
Pfeil links

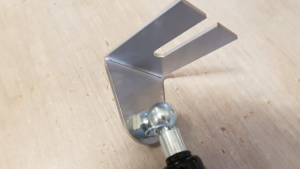

Engine bonnet lifter stainless steel unpainted.
Pfeil rechts

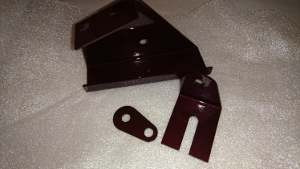

Engine bonnet lifter stainless steel painted in car-colour.
Motorhaubenlift lackiert
© PIMPmyCASCCADA 27.09.2017

Sicherungsfeder
© PIMPmyCASCCADA 26.01.2019
Pfeil links

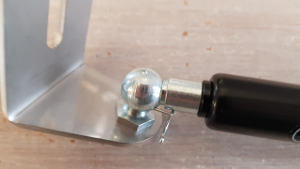

open safety spring from lifter, turn it around ...
Pfeil rechts

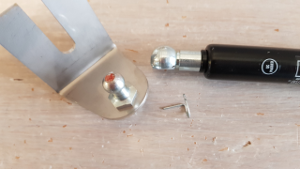

... and pull it out down.
Sicherungsfeder
© PIMPmyCASCCADA 26.01.2019
Sicherungsfeder
© PIMPmyCASCCADA 26.01.2019
Pfeil links
Now the hydraulic lift can be pulled off the ball pins. Take good care of the safety springs of the hydraulic lifts that fall quickly, is also not available separately!

Motorhaubenlift lackiert
© PIMPmyCASCCADA 16.08.2017
Pfeil links

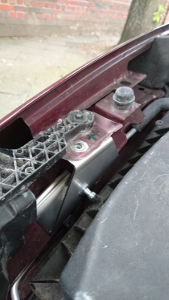

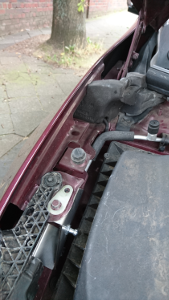

Loosen the front nut of the bonnet holder and push the angle underneath until it stops and screw it tight again.
Pfeil rechts
Take out the screw from the fender. Remove the foil from the tape of the holder and push the holder all the way under until it fits.
Motorhaubenlift lackiert
© PIMPmyCASCCADA 16.08.2017
Motorhaubenlift lackiert
© PIMPmyCASCCADA 16.08.2017
Pfeil links
Place the washer with the two holes on it and tighten again with the screw. Now the optional second hole (8 mm) can be drilled and screwed with the supplied screw.

Motorhaubenlift lackiert
© PIMPmyCASCCADA 16.08.2017
Pfeil links

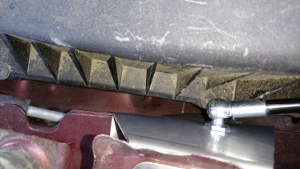

Finally, clamp the lift at the bottom and secure it with the safety spring ...
Pfeil rechts

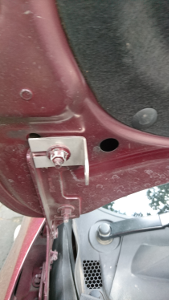

... and than at top.
Motorhaubenlift lackiert
© PIMPmyCASCCADA 16.08.2017
Motorhaubenlift lackiert
© PIMPmyCASCCADA 16.08.2017
Pfeil links

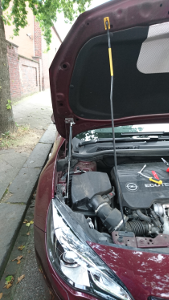

The rod can be removed, if you want.
Pfeil rechts

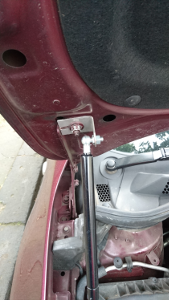

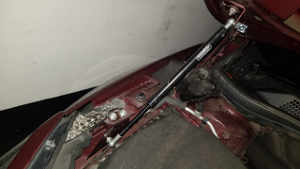

Painted and mounted.
Motorhaubenlift lackiert
© PIMPmyCASCCADA 26.01.2019
Here too, the mounting-video from ME-Speedshop.

Einbauvideo
